Large format tile has become the standard in hospitality lobbies, corporate common areas, and healthcare public spaces — and it has become the most common source of tile failures when installed by contractors who treat a 24x48 panel like a 12x12 mosaic. Sizes from 12x24 through gauged porcelain panels exceeding 48x96 inches demand substrate flatness tolerances, mortar coverage requirements, and lippage-free setting standards that standard tile contractors are not equipped to meet. ATR Floors installs to ANSI A108.02 standards across the Twin Cities metro.
12x24 – 48x96
Sizes Installed
1/8" in 10'
Flatness Tolerance
95% min
Mortar Coverage
The problem
Even minor substrate variation can create lippage, poor mortar coverage, and visibly uneven large-format tile.
How ATR solves it
ATR maps and corrects the substrate before setting to meet the tighter tolerance large tile requires.
The problem
Oversized tile and gauged porcelain panels are vulnerable to breakage, voids, and alignment errors during installation.
How ATR solves it
ATR uses the equipment, handling plan, mortar coverage, and crew coordination required for large units.
The problem
Substrate movement can transfer across a large tile field and produce expensive failures.
How ATR solves it
ATR evaluates repair, membrane, movement-joint, and setting requirements before installation.
The problem
Large-format tile thickness and buildup must meet adjacent carpet, resilient, wood, or concrete finishes cleanly.
How ATR solves it
ATR coordinates elevations and transitions with the rest of the commercial flooring package.
Large format dominates modern commercial design because of fewer grout joints, a contemporary monolithic aesthetic, gauged-porcelain durability harder than granite, and digital-printing design versatility from marble to concrete looks.
The entry point of large format. The most commonly specified commercial tile size for corridors, bathrooms, and general floor areas.
Square large format for grid patterns. Common in education and institutional settings.

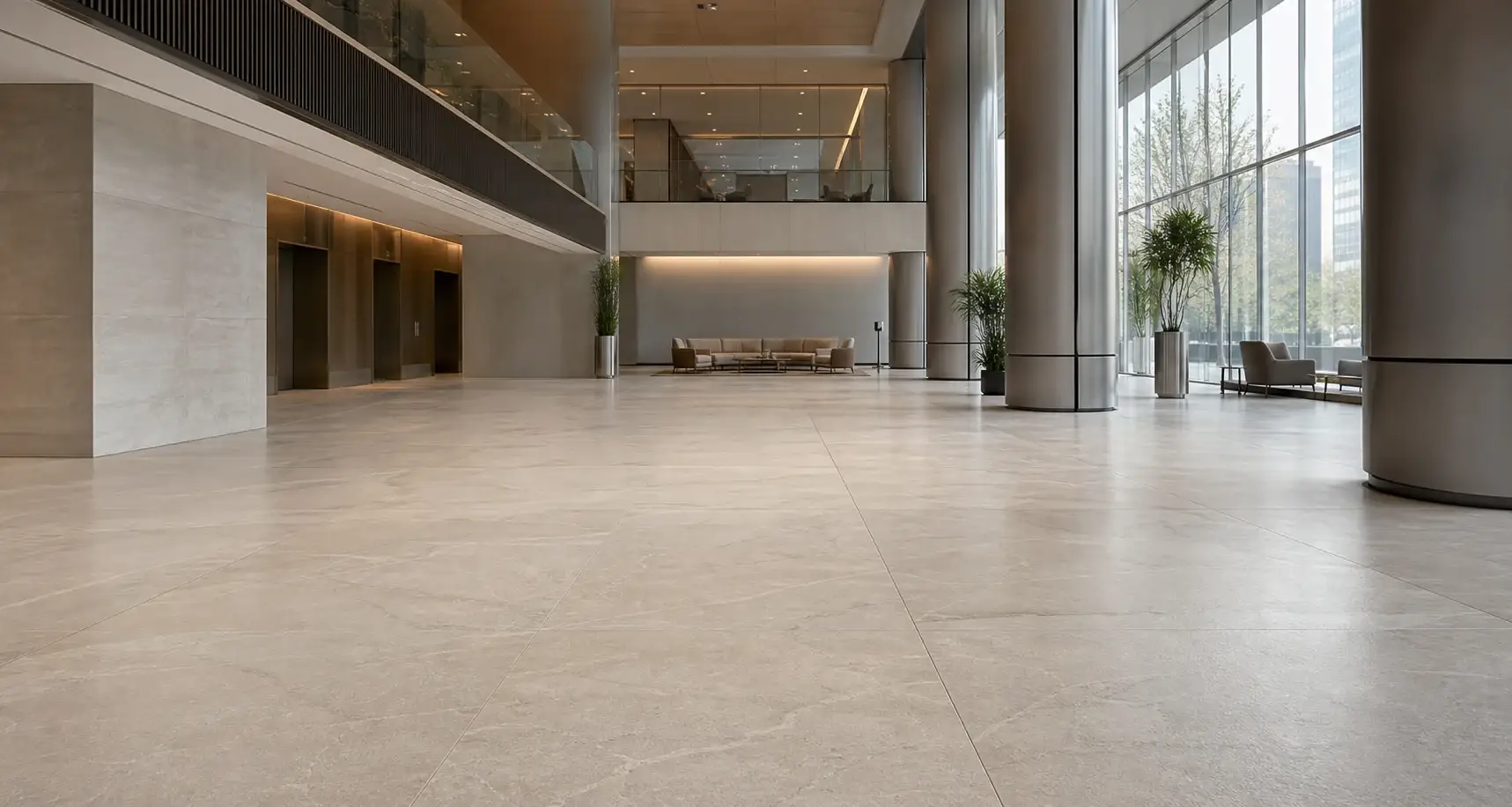

The standard hospitality lobby and corporate common area specification. Achieves the "slab" look with manageable handling logistics.
Gauged porcelain panels for feature walls, lobby floors, and high-design commercial spaces. Require vacuum-cup lifting systems and a minimum two-person setting crew.
Leveling clip systems at every joint intersection, full back-buttering, directional troweling, and minimum 95% mortar coverage verified by periodic lift checks.
Sheet, liquid-applied, or peel-and-stick crack isolation membranes prevent reflective cracking from substrate movement on renovation and new construction projects.
For tiles 15 inches or longer on any side, substrate variation must not exceed 1/8 inch in 10 feet. For gauged porcelain panels on premium hospitality projects, 1/16 inch in 10 feet is common. Most existing commercial slabs don't meet these tolerances without preparation — we level with cementitious self-leveling underlayment when they don't.
Substrate flatness verified, mortar coverage verified, lippage tolerance enforced with leveling systems on every install.

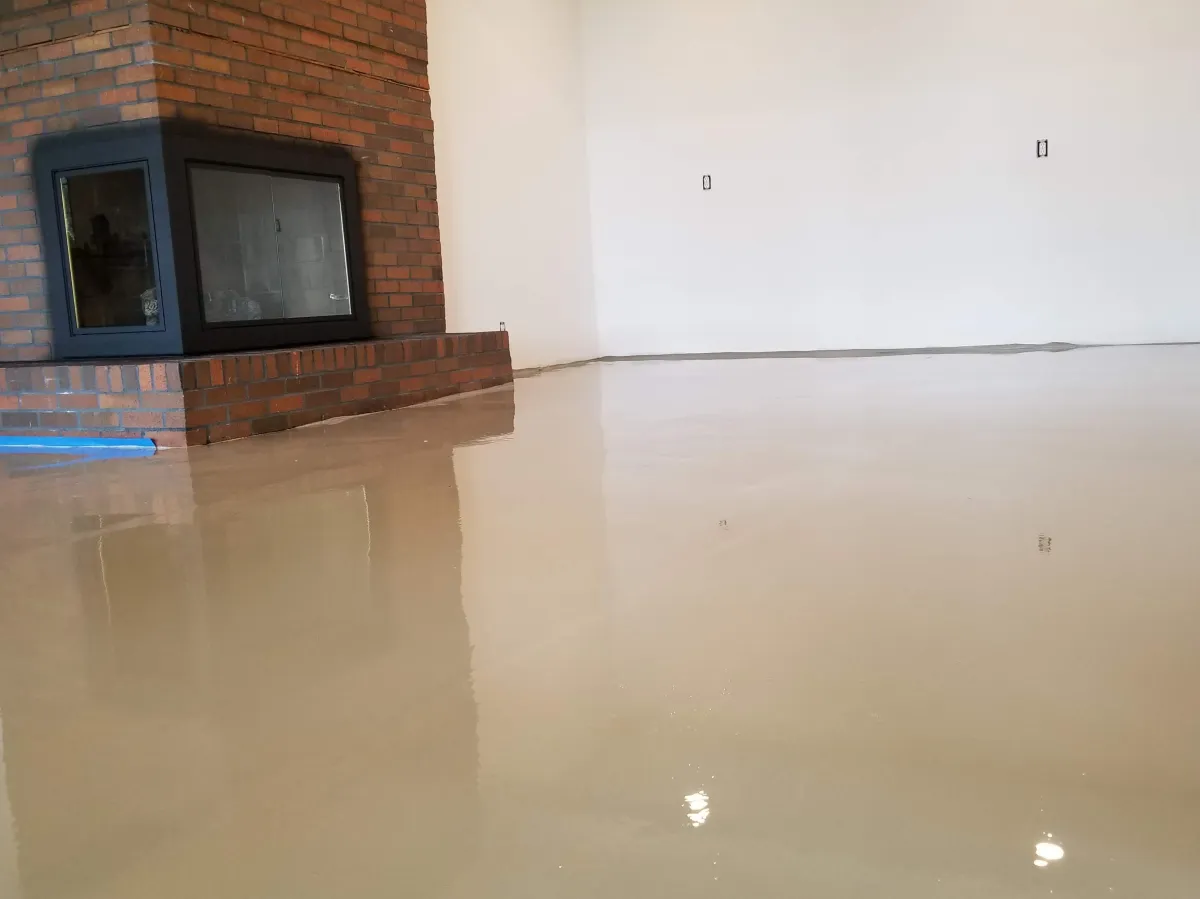

Cementitious self-leveling pour to correct flatness — no surprise change orders when the slab doesn't meet tolerance.
48x48 and 48x96 panels installed with vacuum-cup lifting systems and trained two-person crews.
Crack isolation membranes standard on renovation projects and where TCNA spacing recommendations are exceeded.
For tiles with any side 15 inches or longer: 1/8 inch maximum variation in 10 feet per ANSI A108.02. For gauged porcelain panels on premium hospitality projects: 1/16 inch in 10 feet is common. We measure before installation and level with cementitious underlayment if the substrate does not meet the standard.
In some cases, yes — if the existing tile or terrazzo is sound, well-bonded, and flat enough to meet the tolerance requirements. We assess the existing surface for hollow spots, delamination, and flatness. If removal is required, the Clean Slate Process handles it without grinding dust.
Gauged porcelain panels (48x48, 48x96, and larger) require specialized handling equipment (vacuum-cup lifting systems), a minimum two-person setting crew, and extremely flat substrates. We install them in hospitality lobbies, corporate common areas, and high-design commercial spaces.
Retrofit projects over aged concrete almost never meet the flatness tolerances large-format tile requires. We pour cementitious self-leveling underlayment to create a flat, level surface. The pour typically adds 1/4 to 1/2 inch of substrate height and achieves FF 30 to 40 flatness numbers — well within the ANSI tolerance.
ATR provides a 2-year workmanship warranty on installation covering adhesion, grout integrity, and substrate leveling performance. Tile and grout manufacturers provide separate material warranties.
Include tile size, sq ft, substrate type, and project schedule. We respond within one business day.
